SUPSI学校项目——公共空间的营造（by 隈研吾建筑都市设计事务所）

**zhenaihuai** · 拓城校尉|**zhenaihuai** 发表于 2013-3-23 02:17:05

本帖最后由 zhenaihuai 于 2013-3-23 17:07 编辑

本文由E拓建筑网www.eeeetop.com的zhenaihuai翻译，转载必须保留以上信息！

Kengo Kuma has paired up with Studio d`Architettura Martino Pedrozzi to develop a two-phase addition to La Scuola Universitaria Professionale della Svizzera Italiana (SUPSI), an institute of higher-education in applied science located in the Italian-speaking region of Switzerland. The proposal intends to overcome an existing urban barrier of an expansive railway system to link the university to the city of Mendrisio, utilizing a “skywalk” as well as a large underpass. Because accessibility and movement are at the core of the building’s design, the new addition is a fusion of infrastructure as well as artificial landscape.

隈研吾为瑞士南方应用科技大学（位于瑞士意大利语区有关应用科学的高等学府）设计了一个分期建造的演播厅。一条大道将大学与门德里西奥城市相连，为了克服这个城市现有弊端，此方案利用一个人行天桥作为大型通道。可以走近并在其中活动是这个建筑设计的核心，同时也是人工景观与公共设施的相互融合。

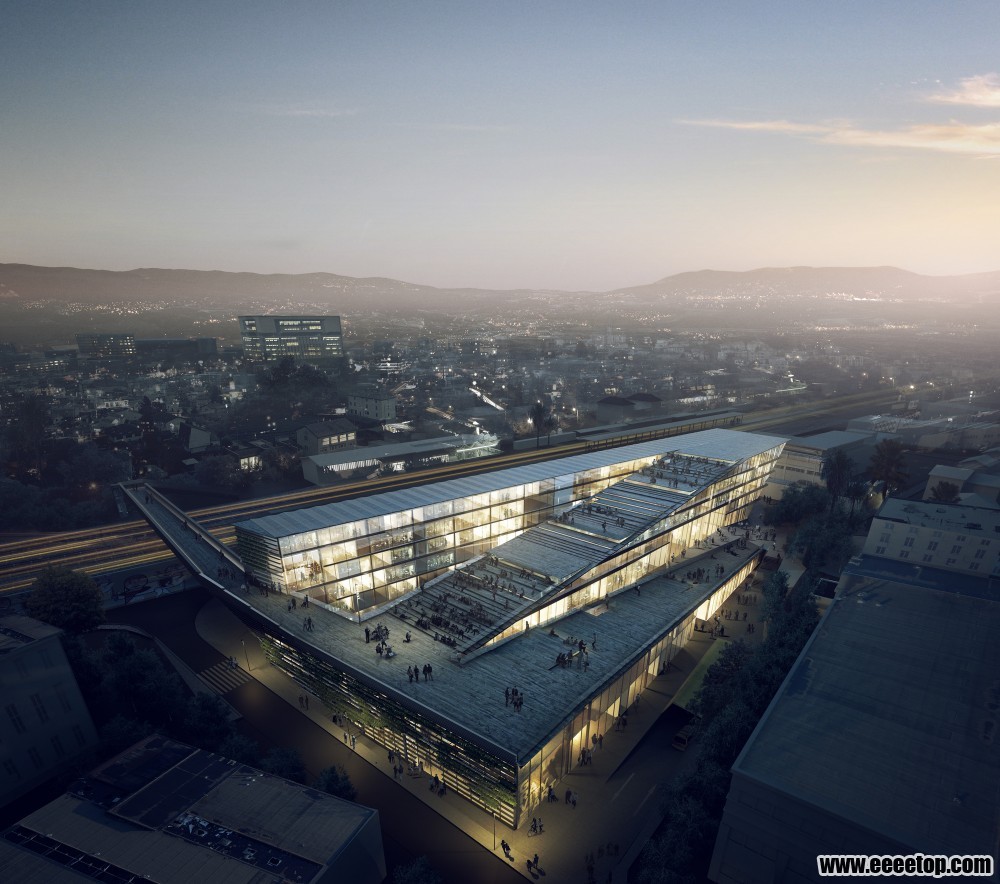

The essence of Kuma’s SUPSI design is the ramp, sloping in two directions to form a zig-zag shape where the roofs of the inclines become inhabitable public spaces. These inclined planes were inspired by the layered stone composition of local building roofs, thereby embracing a reinterpretation of scale and building tradition.

隈研吾此设计精华为斜坡，两个不同方向倾斜形成一个曲折型，屋顶的斜坡成为可活动的公共空间。斜面的灵感来源于当地分层石组成的建筑屋顶，这是建筑传统的重新阐释。

There is a main green promenade and a block-long green wall that reinvents green, sustainable practices, paired with a building envelope made of alternating stone and aluminum panels determined by daylight orientation. Natural light is an important and attractive component of the design, with large windows that let in sun throughout the year and very high levels of thermal insulation to keep the building warm during harsh Swiss winters. Kuma and his team paid very close attention to sun exposure, temperature and views throughout the building, making adjustments where necessary to capitalize on the school’s nuanced environment.

有一条主要的绿色长廊和一整面绿化的墙体重新定义绿色、可持续建筑。建筑外壳配有交替的石头和随日光变化的铝面板。自然光线是这个设计中重要且吸引人的部分，大面积玻璃可以保证全年日光照射，同时其高度的隔热效果可以确保建筑物在瑞士的严寒季节里仍旧温暖。隈研吾和他的团队十分关注建筑物内的日照、温度和视野问题，并以此判断出哪些可以利用学校环境的细微差别来做出调整。

Many different outdoor spaces, some completely open while others more sheltered, are defined by the terrace and positioned to provide comfortable experiences in varying conditions.

许多不同的室外空间，有些完全开敞，而有些则十分隐蔽。这些屋顶平台提供了不同场景下的舒适体验。

Classrooms and a cafeteria are located on the ground floor with laboratories situated across a covered outdoor area. The lab space is covered in glazing but can be opened to the outdoors in good weather, creating further dialogue between infrastructure and landscape.

教室和自主餐厅地处一层，实验室则位于户外覆盖区。实验室空间顶部被玻璃覆盖，良好天气下玻璃可以开向户外，室内外空间互相渗透。

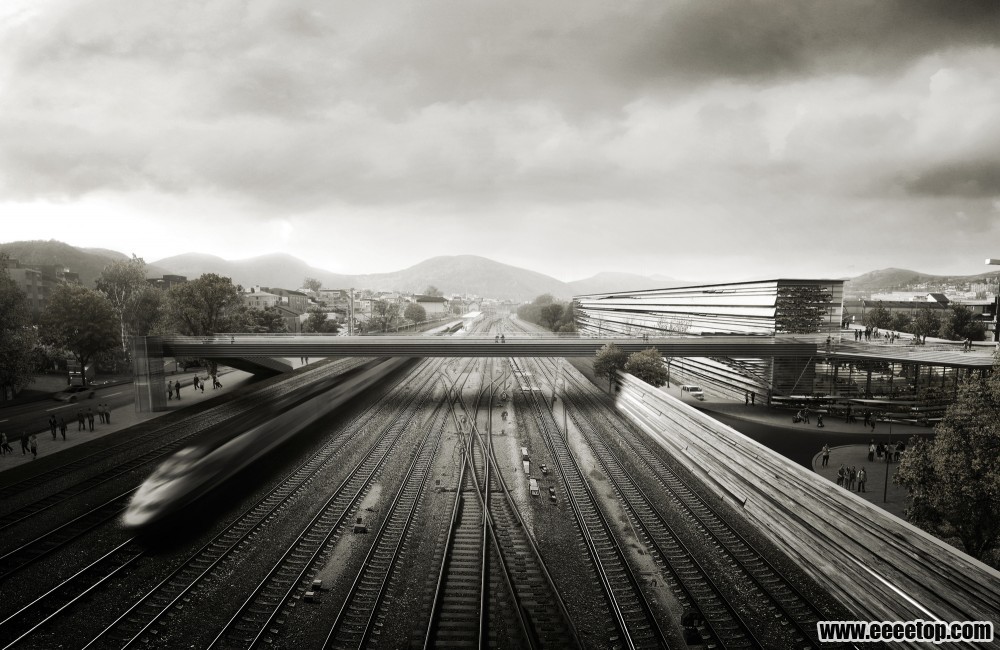

The bridge linking the university to the other side of the rail track is located at the north end of the building, a continuation of the roof terrace that extends out into the city of Mendrisio. Kuma and his team designed the SUPSI to stand as an example of technological and urban ingenuity, showing the importance of designing for the existing urban fabric and its citizens.

大桥连接学校到道路另一边的建筑北部结束，连续的平台融入门德里西奥这座城市。隈研吾和他的团队的设计彰显了工艺魅力和城市智慧，向现有的城市建筑和它的公民显示了设计的重要性。

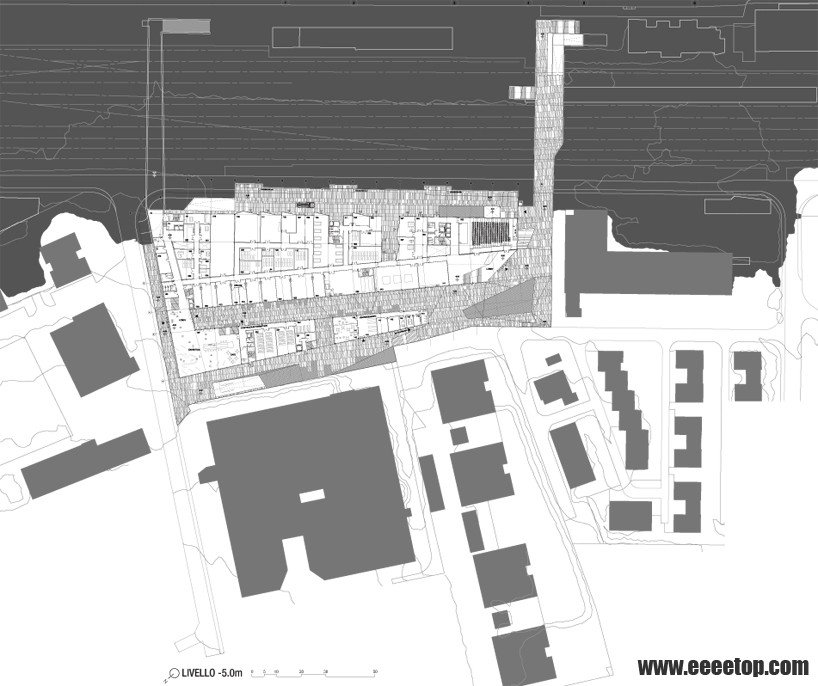

平面图（-5M高）：

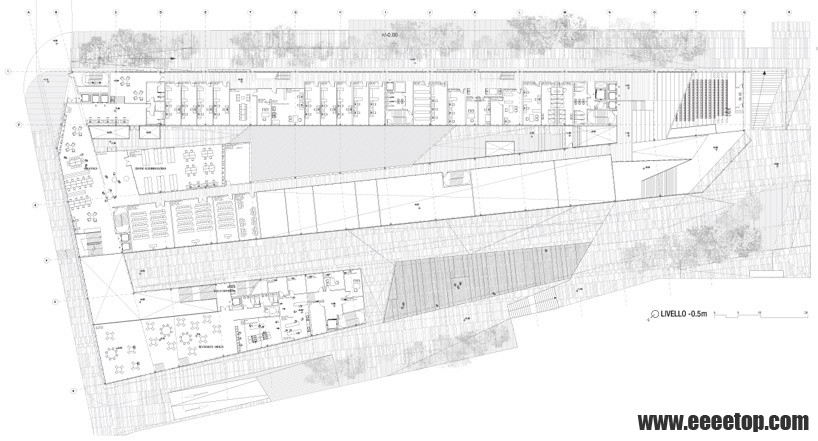

平面图（-0.5M高）：

平面图（3M高）：

平面图（6M高）：

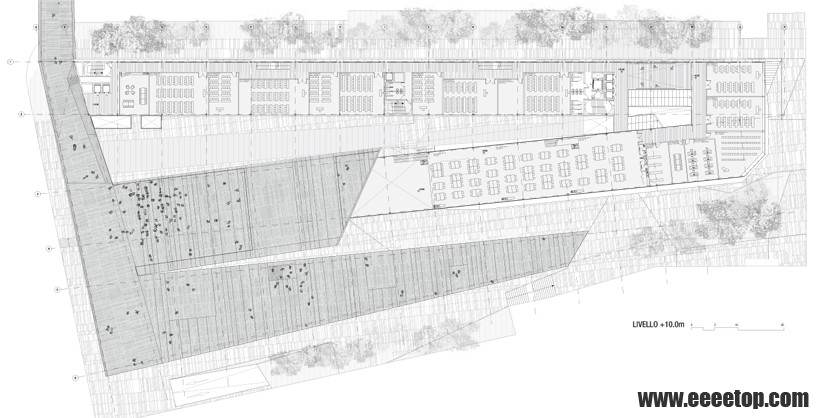

平面图（10M高）：

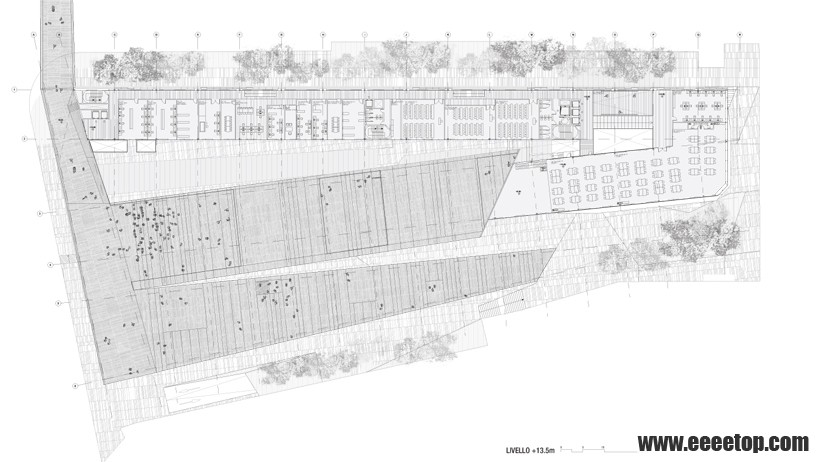

平面图（13.5M高）：

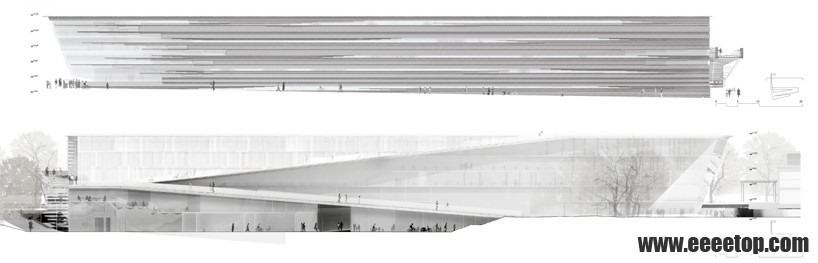

立面图：

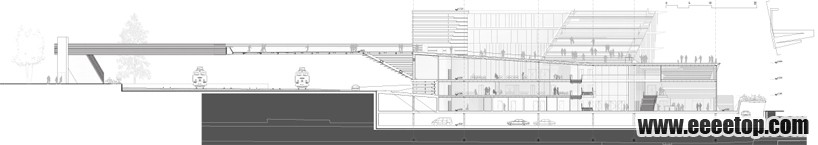

剖面图：

Architects: Kengo Kuma and Associates 建筑设计：隈研吾建筑都市设计事务所
Principal: Kengo Kuma 主要负责人：隈研吾
Partner: Yuki Ikeguchi 合作者：池口由纪
Design Team（团队成员）: Marcin Sapeta, NaYoung Kim, Anteo Taro Sanada, Kiyoaki Takeda, Flavia Gabriela Barrera Quintana , Miguel Bispo, Bruno Marques, Laura Myllyluoma, Hannah Taylor, Adeline de Vrij, Sam Yul Huh, Ania Popieralska
Local Architect: Studio d`architettura Martino Pedrozzi, Mendrisio, Martino Pedrozzi, Andrea Nardi
3 D Team（3D组）: MIR, Chihiro Isono, Junki Wakuda, Hiroaki Saito (KKAA)
Civil Engineer（土木工程师）: Furst Laffranchi Bauingenieure GmbH, Wolfwil
Structural Engineering（结构工程）: Weinmann-Energies SA, Echallens
Electrical Engineer（电气工程）: MAB-Ingenierie SA, Morges
Photographs（摄影）: Courtesy of Kengo Kuma and Associates
References（参考文献）: Kengo Kuma and Associates, Designboom

原文标题: SUPSI Campus Project / Kengo Kuma and Associates
原文地址: http://www.archdaily.com/347270/supsi-campus-project-kengo-kuma-and-associates/
